Rights: daveynin, Creative Commons 2.0 Published 20 May 2016 Size: 4 MB

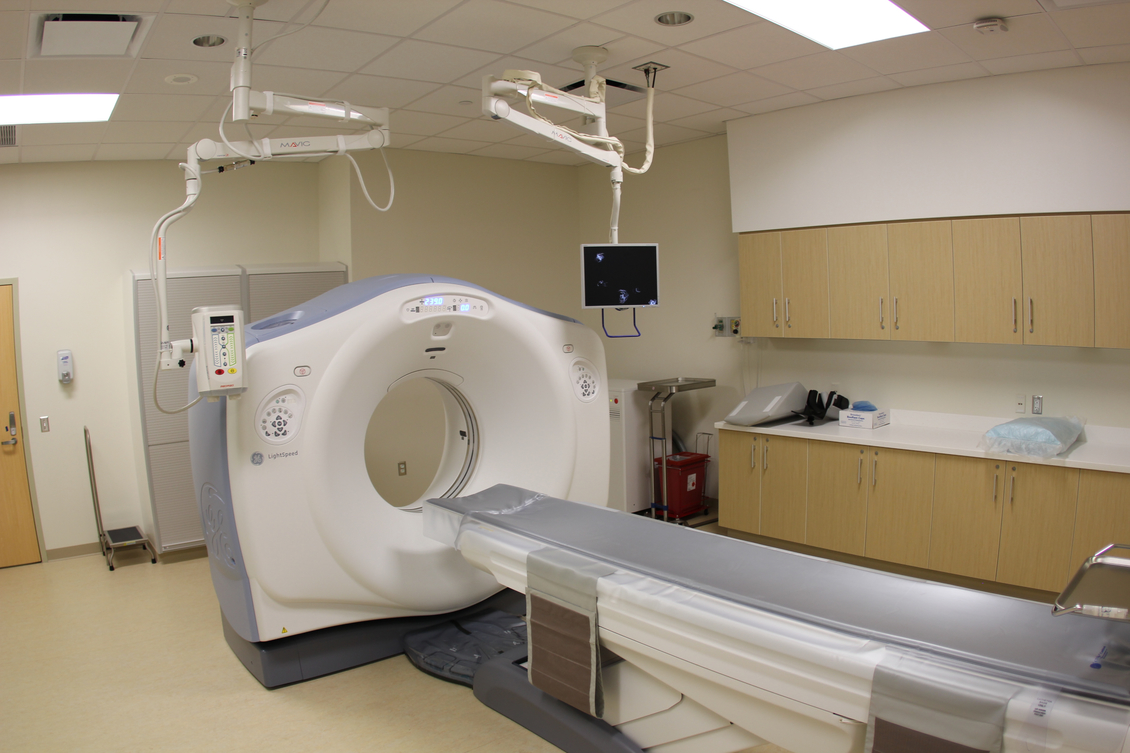

The CT machine has an X-ray tube and X-ray detectors on opposing sides of a ring that spins around the platform that the patient lies on. This platform also slides through the ring and the ring can move around, so the X-ray beams can follow a spiral path.
